Fire Retardant Grade
Our FR Grade foams are UL-94 HF-1 & FMVSS-302 certified. Typically used to resist combustion, used in Diesel Generator sets, Automotive Industry, Furniture, Mattresses, and Upholstery for enhanced fire safety
Densities available
- 18kg/m3,23kg/m3, 26kg/m3, 28kg/m3, 32kg/m3, 40kg/m3 & 50 kg/m3
- Densities can also be developed as per requirements
Applications

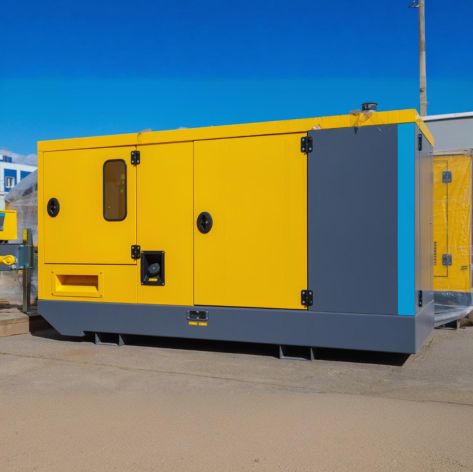

- DG Sets
- Car Seats
- Movie Theatres
- Other applications for enhanced fire safety
| FOAM VARIETY | Test Method | Test Standard | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Characteristics | 23 FR | 26 FR | 28 FR | 32 FR | 40 FR | - | - | - | - | - |
| Density (in kg/m3) | 22.37 | 25.53 | 27.54 | 31.18 | 38.86 | - | - | - | IS 7888 | IS 7933 : 2022 |
| ILD @ 40% | 19 | 19.3 | 20 | 20.5 | 19.8 | - | - | - | IS 7888 | IS 7933 : 2022 |
| Load Quotient | 2.42 | 2.32 | 2.47 | 2.4 | 2.13 | - | - | - | IS 7888 | IS 7933 : 2022 |
| Tensile | 0.9 | 1.007 | 1.033 | 1.069 | 1.061 | - | - | - | IS 7888 | IS 7933 : 2022 |
| Elongation (%) | 147.34 | 148.93 | 150.18 | 173.22 | 186.12 | - | - | - | IS 7888 | IS 7933 : 2022 |
| Resilience (%) | 38 | 39 | 40 | 42 | 46 | - | - | - | ISO 8307 | - |
| Flammability Standard | 20mm(UL94) | 16mm(UL94) | 18mm(UL94) | 15mm(UL94) | 14mm(UL94) | - | - | - | - | - |
